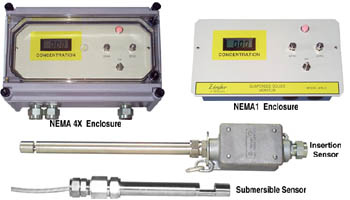

This innovative suspended solids monitor accurately measures the concentration of solids in
clear or colored fluids. The instrument offers a low range scale of 0-2000ppm and scales
up to 0-50% suspended solids. The instrument is available with either an insertion-type
or submersible-type sensor. The insertion-type sensor slips through a compression fitting
allowing installation into any size pipe, which eliminates costly bypass systems. The
submersible sensor is used in tanks, ponds or open channel applications.
In-situ measurements provide instantaneous, accurate readings without sampling. The instrument comes with your choice of isolated linear outputs (4-20mA is standard).
The Suspended Solids Monitor Model 978-C uses a pre-focused incandescent lamp to direct a beam of light through the process fluid. Particulate matter in the fluid absorbs light in proportion to particulate concentration. The transmitted light is received by a silicon detector which generates a current signal proportional to the particulate concentration. The electronic signal converter amplifies and scales the current signal to provide a readout on a meter and an isolated output signal.
978-C Installation Manual (PDF, 283KB)
| Type | Insertion Probe | Submersible Probe |
| Size | Pipes greater than 2 inches | Open channel/tanks |
| Wetted Parts | 316 Stainless, glass | 316 Stainless, glass |
| Process Temp. | -10oC to 110oC | -10oC to 60oC |
| Pressure | 0 to 150 psig | 0 to 50 psig(110 feet of water) |
| Mounting | 1" NPT male | Cable or rigid mount |
| Diameter | 7/8" | 7/8" |
| Length | 12" | 8" |
| Junction Box | 2 X 4 X 2" | None |
TRANSMITTER
| Display | 3-1/2 digit LCD (0 to 2, 0 to 20, 0 to 200 or 0 to 2000 scales) |
| Range | 0 to 2000ppm to 0 to 50% full scale |
| Input | Model 978-C Sensor |
| Output | 4-20 mA into 600 ohms max. isolated, other outputs available |
| Resolution | 0.05% of Scale |
| Repeatability | 0.05% of Scale |
| Ambient Temperature | 0oC to 50oC |
| Alarms | Optional Dual Alarms |
| Enclosure | NEMA 1 or NEMA 4X |
| Dimensions (NEMA 1)(NEMA 4X) | 11" W x 6" H x 4" D |
| 11-7/8" W x 7-1/4" H x 6-3/4" D | |
| Mounting (NEMA 1)(NEMA 4X) | Panel or wall mount |
| Wall or pipe mount | |
| Power | 115 or 230 VAC @ 50/60 Hz, 20 Watts. Optional 12 & 24 VDC etc. |
| Shipping Weight | 16-24 lbs. Depending on Options |
| PART# | ITEM | DESCRIPTION | Price US Dollars |
| 978C000 | 978-C | Suspended Solids Monitor | $2,490.00 |
| 978C600 | 12 VDC Power | 12 VDC powered transmitter option for 978-C | $236.00 |
| 978C601 | 24 VDC Power | 24 VDC powered transmitter option for 978-C | $290.00 |
| 978C900 | Cable | Extra interconnecting cable for 978-C | $1.60 |
| 978C300 | Dual Alarms | Dual alarm option for 978-C | $325.00 |
| 978C500 | Light Shield | Light shield option for 978-C | $236.00 |
| 978C100 | Nema 4X | Nema 4X enclosure option for 978-C | $309.00 |
| 978C200 | Pipe Insertion Adapter | Pipe insertion/removal adapter option for 978-C | $325.00 |
| 978C400 | Submersible Sensor | Submersible-type sensor option for 978-C | $189.00 |
